Provide a comprehensive solution for plasma surface treatment and detection
Product Series
Provide a comprehensive solution for plasma surface treatment and detection

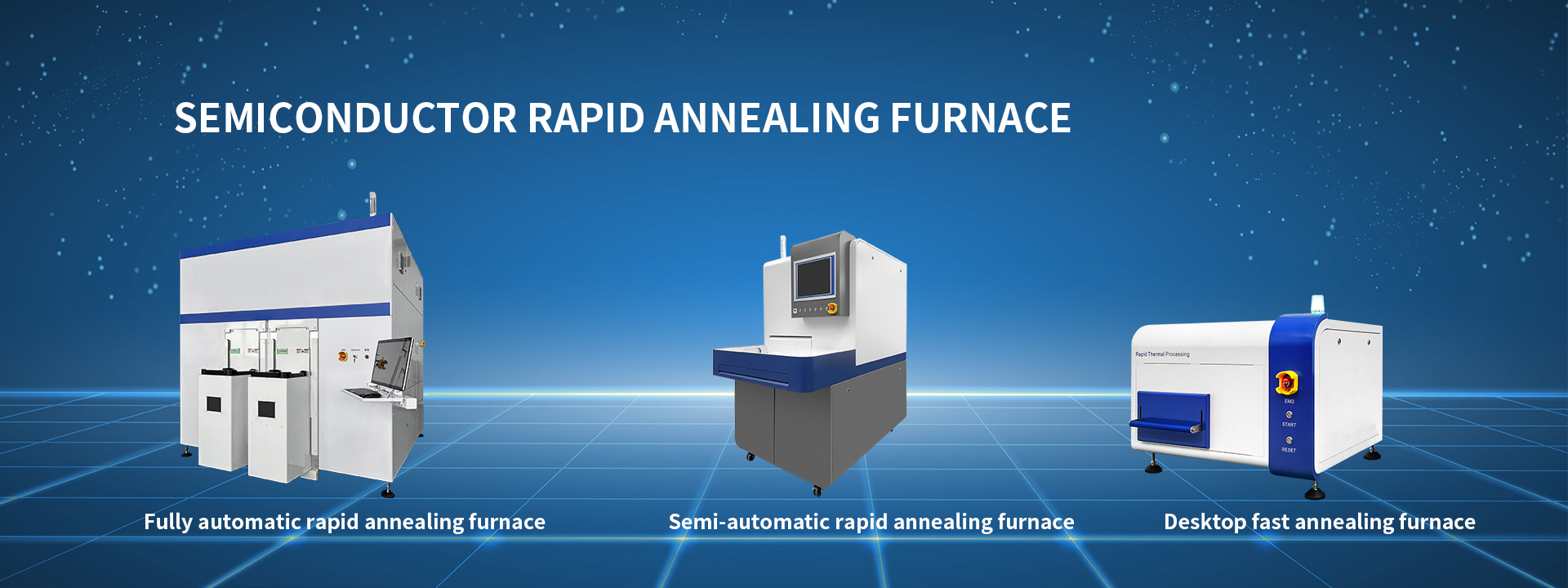

Semiconductor rapid annealing furnace
Desktop semiconductor rapid annealing furnace

Product features:

Infrared halogen lamp tube heating, cooling using air cooling;

PID temperature control with lamp power can accurately control temperature rise, ensuring good reproducibility and temperature uniformity;

Adopting a parallel gas inlet method, the gas inlet is set on the surface of the WAFER to avoid cold spots during annealing and ensure good temperature uniformity of the product;

Both atmospheric and vacuum treatment methods can be selected, with gas purification treatment before intake;

Two sets of process gases are standard;

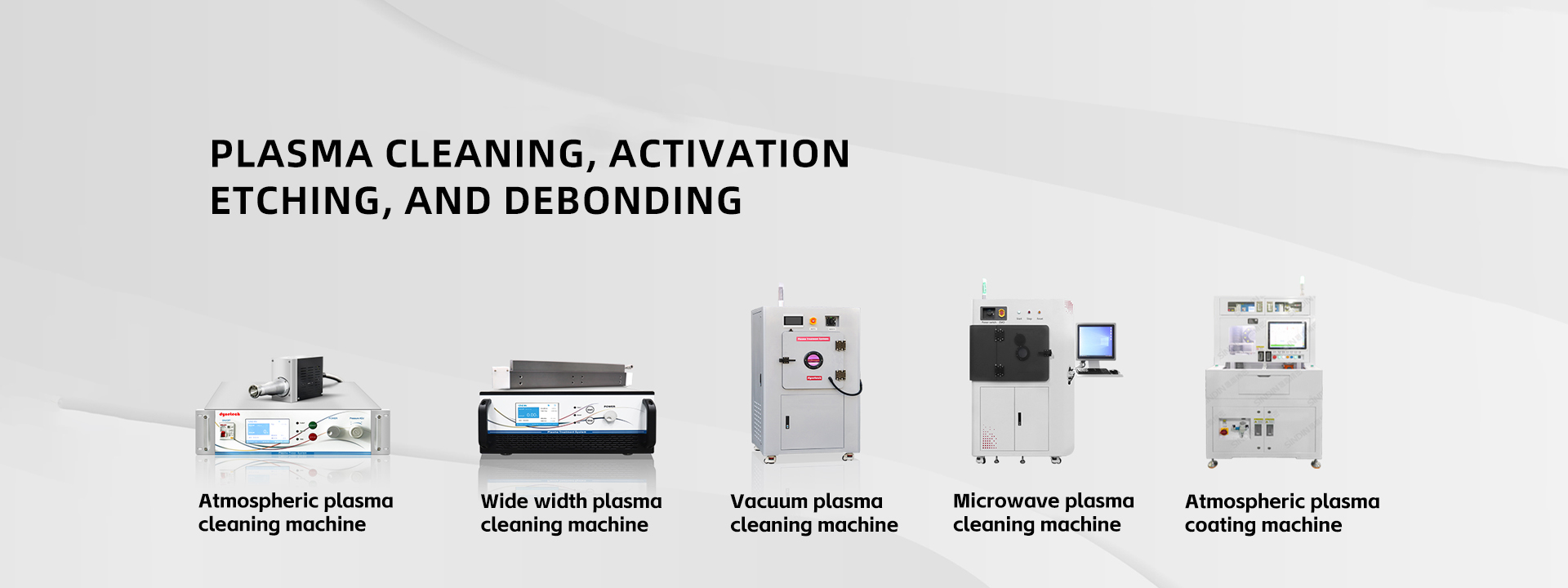

Microwave plasma cleaning machine
Microwave plasma cleaning machine

Introduction:

For semiconductor chip bonding pre-treatment, plastic sealing pre-treatment, photoresist removal, metal bonding and pre-treatment.

Eight major advantages:

Plasma is not charged and will not cause damage to the circuit. During the processing, maintain a lower temperature

Fast reaction speed, short reaction time, no electrode, no pollution source, long service life

Can maintain plasma under high pressure, microwave junction and magnetic circuit are compatible

Self bias voltage requires low to high voltage sources and generators to be isolated from each other for safety

Plasma adhesive remover
ICP dry plasma adhesive remover

Introduction:

Can remove photoresist in BAW/SAW process, equipped with two types of single cavity and double cavity

Core advantages:

The degree of plasma ionization and decomposition is relatively high

High reproducibility after plasma treatment

Can maintain plasma under high pressure

Separation of high-pressure source and ion generator

Plasma cleaning machine
SPV-150 vacuum plasma cleaning machine

Introduction:

Military grade welding technology, strong sealing of vacuum chamber, high-density plasma source, uniform cleaning in all directions;

Suitable for processing materials with large areas and complex shapes, it can be paired with dual or multiple process gas control for stable and high-density plasma sources, ensuring uniform cleaning in all directions.Multiple pieces/batches of materials can be processed at once, with high processing efficiency. According to industry needs, vacuum plasma assembly line equipment can be customized to work fully automatically, reducing labor costs.

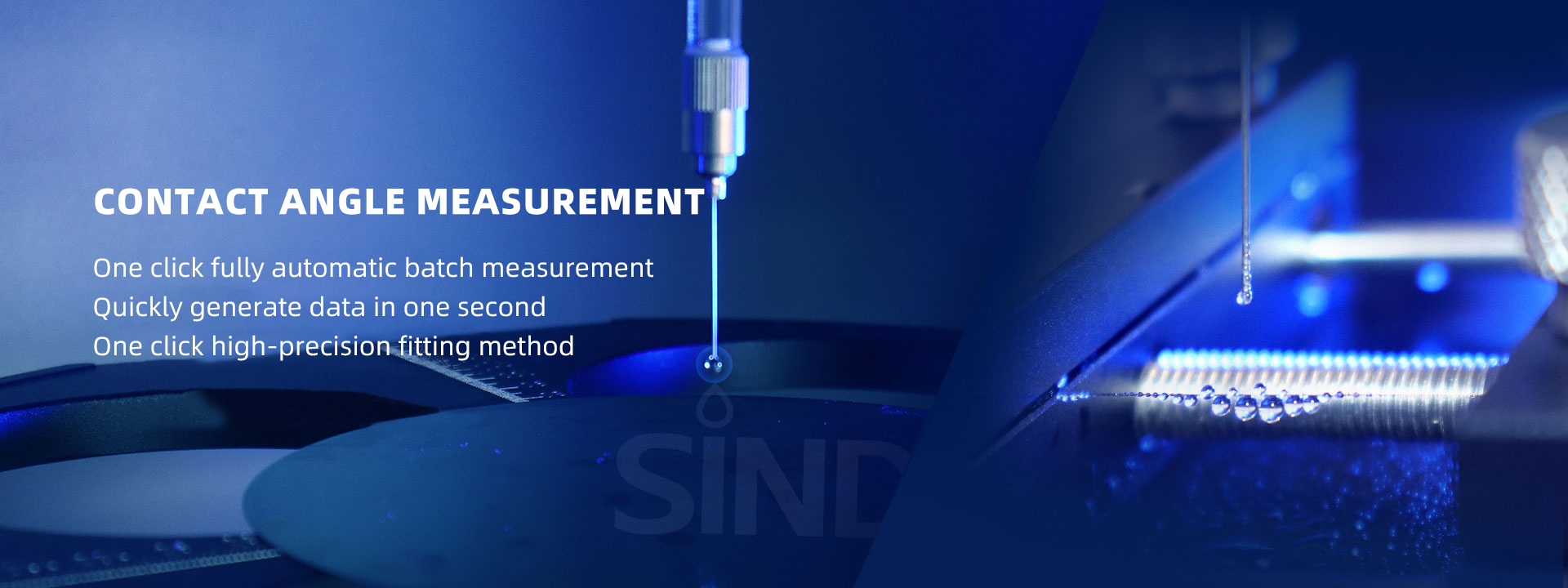

Contact angle measuring instrument
SDC-200S scientific research contact angle measuring instrument

Introduction:

A fully functional and highly scalable contact angle measuring instrument.

Instrument construction:

The contact angle measuring instrument mainly consists of five parts: control system, injection system, three-axis moving sample stage video acquisition system, and analysis software. The equipment adopts the principle of optical projection.


USC dry ultrasonic dust removal
USC display screen dry ultrasonic dust removal
Brief introduction:
three μ 97% clearance rate of m dust particles, 6 μ 98% clearance rate of m dust particles

Ultrasonic Dry Cleaner provides 8-16Kpa of clean gas to the ultrasonic generation chamber of the dust removal head through a blower. The gas generates ultrasonic waves through an ultrasonic generator, utilizing the energy and vibration of ultrasonic waves to overcome the adhesion force on the surface of the glass substrate. The dust particles detach from the surface of the glass substrate through three modes of movement (single or mixed): lifting, rolling, and sliding.

我们服务
贴心服务 售后无忧
SINDIN
/Provide a comprehensive solution for plasma surface treatment and detection

SINDIN is a subsidiary of SINDIN Group, headquartered in 2012. It is a national high-tech enterprise that integrates research and development, design, production, sales, and industrial chain services. We are committed to providing customers with comprehensive solutions for surface performance treatment and testing. The members of the R&D team mainly hold doctoral, master's, and bachelor's degrees in fields such as industrial automation, with a bachelor's degree or above accounting for 50%.

The core products include RTP rapid annealing furnace, plasma glue remover, plasma cleaning machine, contact angle measuring instrument, USC dry ultrasonic dust removal cleaning machine, ion electrostatic removal device, etc. It has been widely used in semiconductor manufacturing...

  • 40%
    R&D Personnel
  • 7
    Service Network
  • 10year+
    Experience
  • 90+
    Patent Technology
  • 3500+
    Cooperative clients
