Solution for removing photoresist from semiconductor crystal circles

Why remove photoresist?

In modern semiconductor production processes, a large amount of photoresist is used to transfer circuit board graphics through the sensitivity and development of the mask and photoresist to the wafer photoresist, forming specific photoresist graphics on the wafer surface. Then, under the protection of the photoresist, pattern etching or ion implantation is completed on the lower film or wafer substrate, and the original photoresist is completely removed.

Degumming is the final step in photolithography. After the completion of graphic processes such as etching/ion implantation, the remaining photoresist on the wafer surface has completed the functions of pattern transfer and protective layer, and is completely removed through the debonding process.

The removal of photoresist is a very important step in the microfabrication process. Whether the photoresist is completely removed and whether it causes damage to the sample will directly affect the effectiveness of subsequent integrated circuit chip manufacturing processes.

What are the processes for removing semiconductor photoresist?

The semiconductor photoresist removal process is generally divided into two types: wet photoresist removal and dry photoresist removal. Wet degumming can be divided into two categories based on the difference in the degumming medium: oxidation degumming and solvent degumming.

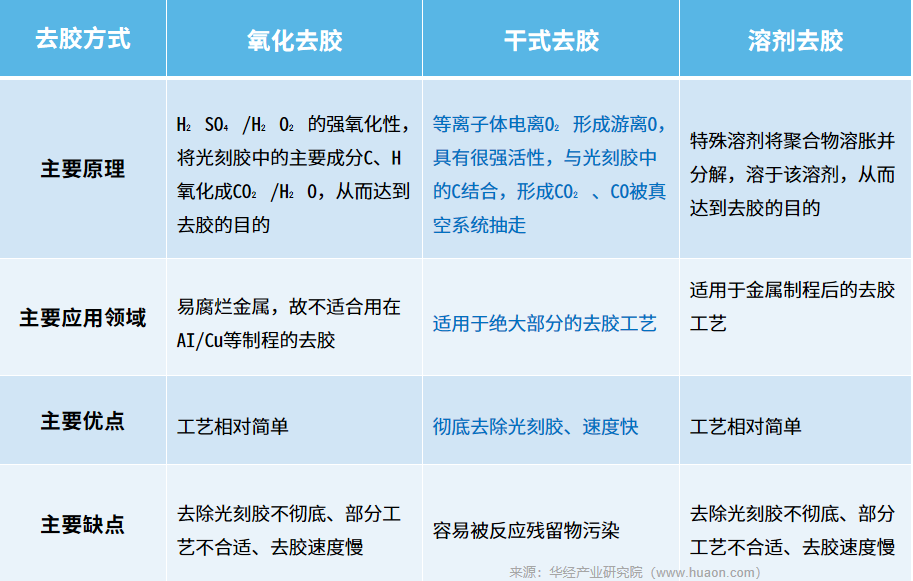

Comparison of various adhesive removal methods:



As can be seen from the above figure, dry debonding is suitable for most debonding processes, with thorough and fast debonding, making it the best method among existing debonding processes. Microwave PLASMA debonding technology is also a type of dry debonding.

Shengding's microwave PLASMA debonding machine is equipped with the first domestic microwave semiconductor debonding generator technology, equipped with a magnetic fluid rotating frame, which makes the microwave plasma output more efficient and uniform. Not only does it have good debonding effect, but it can also achieve non-destructive silicon wafers and other metal devices. And provide "microwave+Bias RF" dual power supply technology to meet different customer needs.

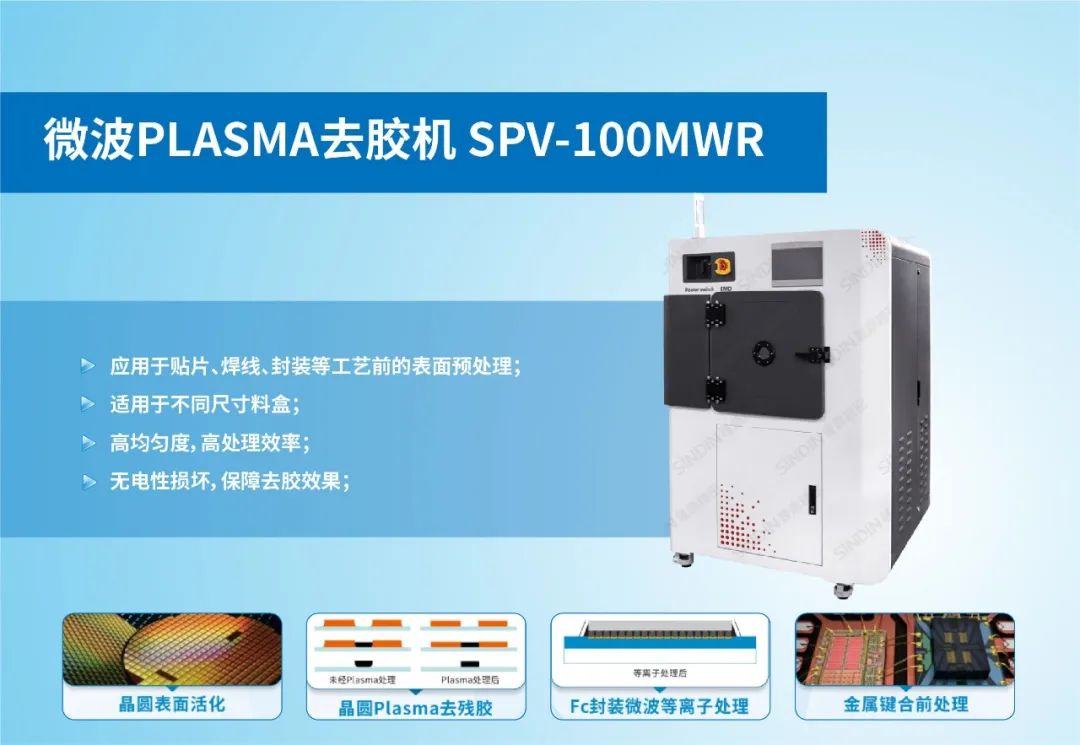

Shengding microwave PLASMA glue remover




Product advantages:

① The plasma of free radical molecules has no bias and no electrical damage;

② The product can be placed on pallets, slotted or enclosed Magizine, with high processing efficiency;

③ Magizine can be configured with a rotating frame, and through reasonable ECR design and good gas flow regulation, it can achieve relatively high uniformity;

④ Integrated control system design, patented control software, more convenient operation;
